+53-
Sleeps 9
-
1 Slides
-
BunkhouseOutdoor Kitchen
-
36ft Long
-
6,510 lbs

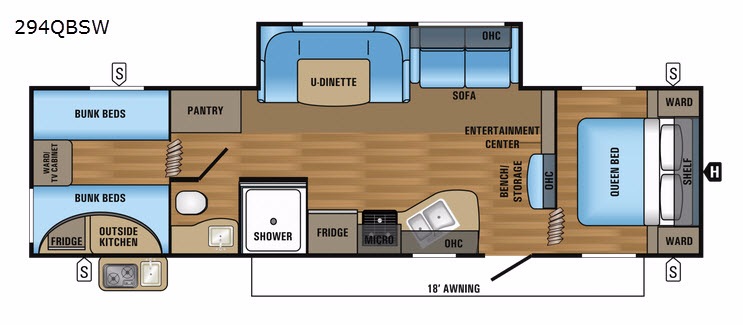

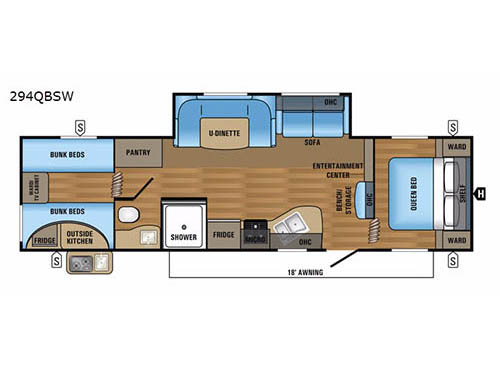

294QBSW Floorplan
Specifications
| Sleeps | 9 | Slides | 1 |
| Length | 35 ft 9 in | Ext Width | 8 ft |
| Ext Height | 11 ft 1 in | Int Height | 6 ft 9 in |
| Hitch Weight | 775 lbs | GVWR | 8250 lbs |
| Dry Weight | 6510 lbs | Cargo Capacity | 1740 lbs |
| Fresh Water Capacity | 40 gals | Grey Water Capacity | 39 gals |
| Black Water Capacity | 39 gals | Number Of Bunks | 4 |
| Available Beds | Queen | Refrigerator Size | 6 cu ft |
| Cooktop Burners | 3 | Number of Awnings | 1 |
| LP Tank Capacity | 40 | Water Heater Capacity | 6 gal |
| Water Heater Type | DSI | AC BTU | 13500 btu |
| Awning Info | 18' | Axle Count | 2 |
| Number of LP Tanks | 2 | Shower Type | Standard |
| Electrical Service | 30 amp | VIN | 1UJBJ0BS0H17M0366 |
Description
* Slide Out
*Outside Kitchen
*Bunks
Bring your whole family camping with this Jay Flight SLX 294QBSW travel trailer. This Jayco model features a single slide out, a rear bunk house, and an outdoor kitchen.
Before you head inside, check out the outside kitchen. Here you will find a refrigerator, a two burner range, and a sink.
Inside, there is a bench/storage, and an entertainment center along the interior wall. To the left of the door you will find an angled double sink, a three burner range with an overhead microwave, and a refrigerator. The slide out along the road side features a sofa with an overhead cabinet, and a u-dinette. Adjacent to the slide out you will find a large pantry.
The bathroom features a toilet, sink, and a shower
In the rear bunk house your kids can take their pick as to which bunk they would prefer with the two sets of bunk beds. Between the bunks, along the rear wall there is a wardrobe/TV cabinet.
A curtain closes off the front bedroom from the rest of the trailer. In the room there is a queen bed, two wardrobes, and a shelf.
Outside enjoy the shade of the 18' awning, plus plenty of exterior storage and more!
Features
- 6-gallon gas water heater (7-foot-wide models only)
- 6-gallon gas DSI water heater (8-foot-wide models only)
- Bathroom skylight
- Front diamond plate
- Pleated window shades
- Power awning
- Range hood
- Stabilizer jacks with sand pads (2 in 7-foot-wide models, 4 in 8-foot-wide models)
- Water heater bypass
Baja Edition Package (7' Wide, Idaho-Built Units Only)
- 20-gallon freshwater tank (145RB, 154BH)
- 30-gallon freshwater tank (174BH, 185RB, 195RB)
- 30-lb. propane bottle
- Black diamond-plate sidewall skirt
- Triple-tread step
- Enclosed underbelly
- Flipped axle
- Off-road tires with black rims
- Stabilizer jacks (4)
Baja Edition Package (8' Wide, Idaho-Built Units Only)
- 16” off road tires
- 2nd fresh water tank, 80-gallon capacity
- Enclosed underbelly
- Triple-tread step
- Flipped axle
- Solar prep
- .024 mesa crimp exterior aluminum
- I-class cambered structural steel I-beams (8-foot-wide models only)
- 3-inch, cambered, steel box tube frame
- Fully integrated A-frame
- 5⁄8-inch tongue-and-groove plywood floor decking (8-foot-wide models only)
- Magnum Truss Roof System with seamless DiFlex II material
- 2-sided reflective foil insulation in flush-floor slideout floors (8-foot-wide models only)
- Electric slideouts with enclosed gear system (8-foot-wide slideout models only)
- 30-inch x 72-inch main entrance door (8-foot-wide models only)
- Entrance doors and baggage doors all keyed alike
- Amber patio light
- 13,500-BTU roof-mounted A/C (8-foot-wide models only)
- Clamp-ringed, safety-glass windows with automotive gasket seals
- Radial tires with galvanized steel, impact-resistant wheel wells
- Keyed Alike radius-cornered entrance and baggage doors
- Double-wide corner mold extrusions
- Aerodynamic front profile
- Front window with integrated rock guard (7-foot-wide models only)
- 30-amp service
- 20-pound propane bottle(s) (1 on 7-foot-wide, 2 on 8-foot-wide models)
- Exterior speakers
- Spare tire with cover
- G20 dark-tint windows
- Outside shower (8’ wide models only)
- 81-inch ceiling height (8-foot-wide models only)
- Screwed-and-glued cabinetry
- Mission-style maple cabinet doors
- Wardrobe/pantry storage
- Ball-bearing drawer guides throughout, 75-pound capacity with full extension
- Laminate countertops with T-mold edging
- Acrylic sink (7-foot-wide models only)
- Large 60/40 acrylic kitchen sink (8-foot-wide models only)
- Brushed nickel faucets
- 2-burner range (7-foot-wide models only)
- 3-burner range with 9,000-BTU Super Burner and piezo igniter (8-foot-wide models only)
- 3-cubic-foot refrigerator with temperature controls (7-foot-wide models only)
- 6-cubic-foot Norcold refrigerator with temperature controls (8-foot-wide models only)
- Oven (8-foot-wide models only)
- Microwave oven
- High-efficiency Atwood furnace
- Wall-mounted 8,000-BTU A/C (7-foot-wide models only)
- Jayco-made window treatments
- J-Steel jackknife sofa
- Indoor/outdoor dinette table (select 7-foot-wide models only)
- Premium multimedia sound system with MP3/iPod input jacks, and Bluetooth connectivity
- Plywood bed platforms
- DiamondFlor vinyl flooring
- Marine toilet with foot-flush
- Tub surround (8-foot-wide models only)
- Shower curtain with curved shower track (select models)
- Wood-trimmed mirror in bathroom
- Queen Denver mattress (n/a on some 7-foot-wide models)
- Under-bed storage on main/queen beds
- 300-pound-rated bunk beds (select models)
- 600-pound-rated bunk beds (double bunks in 8-foot-wide models only)
- Privacy curtains in bunk areas (select 8-foot-wide models only)
- 4-inch Denver Mattress bunk mats (select models)
- Smoke-glass cabinet inserts (select 8’ wide models only)
- Canadian Standards
- Customer Value Package (212QBW, 242BHSW, 245RLSW, 264BHW, 265RLSW, 267BHSW, 284BHSW, 287BHSW, 32BDSW) SLX: 6 Gal Gas DSI Water Heater, Bath Skylight, Front Diamond Plate, Power Awning, Pleated Window Shades, Range Hood, (4) Stabilizer Jacks, Water Heater Bypass
- 15,000 BTU A/C (212QBW, 242BHSW, 245RLSW, 264BHW, 265RLSW, 267BHSW, 284BHSW, 287BHSW, 32BDSW)
- Chill "N" Stor (245RLSW)
- Baja Edition (Idaho Build Units Only) (212QBW, 242BHSW, 245RLSW, 264BHW, 265RLSW, 267BHSW, 284BHSW, 287BHSW, 32BDSW) (2) 30 lb. LP Bottles, 16" Off Road Tires w/Black Rims, 2nd Fresh Water Tank (80 Gallon Total Capacity), Enclosed Underbelly, Flip Axle and Triple Step, Solar Prep (32BDSW, 267BHSW, 287BHSW, and 265RLSW only), Diamond Plate Radius Skirt (32BDSW, 267BHSW, 287BHSW, and 265RLSW only)
- Underbelly Enclosed (Included w/Baja Edition Option) (212QBW, 242BHSW, 245RLSW, 264BHW, 265RLSW, 267BHSW, 284BHSW, 287BHSW, 32BDSW)
- Bedspread (212QBW, 242BHSW, 245RLSW, 264BHW, 265RLSW, 267BHSW, 284BHSW, 287BHSW, 32BDSW)
- Customer Value Package (145RB, 154BH, 174BH, 175RD, 195RB) - 6 Gal Gas Water Heater, Bath Skylight, Front Diamond Plate, Power Awning, Pleated Window Shades, Range Hood, (2) Stabilizer Jacks, Water Heater Bypass
- Roof Mounted 13,500 Air Conditioner (145RB, 154BH, 174BH, 175RD, 195RB)
- Baja Edition (Idaho Built Units Only) (145RB, 154BH, 174BH, 175RD, 195RB) - 30 lb. LP Bottle, Large Fresh Water Tank (20 Gallon on 145RB, 154BH, 30 Gallon on 195RB, 174BH, 175RD), Flip Axle, Off Road Tires w/Black Rims, Enclosed Underbelly, Double Step, (4) Stab Jacks and Black Diamond Plate Sidewall Skirt
- Queen Bedspread (195RB)
