Grand Design Lineage Series VP Motor Home Class B RVs For Sale
Introducing the new Grand Design Lineage Series VP Class B gas Motorhomes, with open floorplan and the tallest interior height in its class these units are sure to make traveling comfortable and simple!

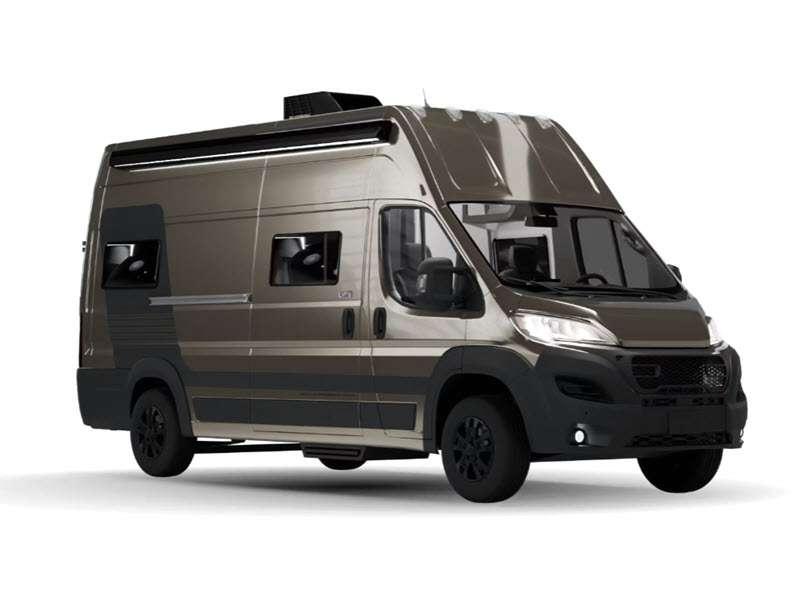

Built on the rugged Ram ProMaster 3500 Super High Roof Ext. chassis, this well-appointed Class B motorhome delivers strong performance from its 3.6L V6 engine and 9-speed automatic transmission, along with advanced safety features like Blind Spot Monitoring, Lane Departure Warning, and ParkSense. Inside, premium insulation and composite flooring create a quiet, comfortable space featuring a convertible U-shaped dinette, hidden induction cooktop, convection microwave, and full bathroom with integrated shower. With a 3,968Wh lithium battery system, 3,000W inverter, solar panel, and Truma Combi heat and hot water system, it’s fully equipped for confident off-grid travel with modern conveniences throughout.
Pick the floorplan that best suits your needs and get on the road with your Grand Design Lineage Series VP Class B gas motorhome!
-
Lineage Series VP LVP1
Grand Design Lineage Series VP Class B gas motorhome LVP1 highlights: Swiveling ... more about Lineage Series VP LVP1
Have a question about this floorplan? Contact Us
Specifications
Sleeps 4 Length 20 ft 11 in Ext Width 6 ft 9 in Ext Height 10 ft 2 in Int Height 6 ft 10 in GVWR 9350 lbs Fresh Water Capacity 31.50 gals Grey Water Capacity 26 gals Black Water Capacity 12 gals Tire Size 225/75R16C Furnace BTU 7500 btu Fuel Type Gas Engine 3.6L V6 24V VVT Chassis 3500 159 EXT SHR Horsepower 276 hp Fuel Capacity 24 gals Wheelbase 159 in Torque 250 ft-lb Refrigerator Type 12V Refrigerator Size 5.30 cu ft Cooktop Burners 1 Number of Awnings 1 Axle Weight Front 4269 lbs Axle Weight Rear 5291 lbs Water Heater Capacity 2.6 gal Water Heater Type Truma Combi Eco Plus AC BTU 18000 btu TV Info Swing Arm TV Awning Info 13' Girard Armless Awning with Wind Sensor Gross Combined Weight 12000 lbs Shower Type Wet/Bath Shower Electrical Service 30 amp Solar Wattage 180 watts Similar Floorplans
-
Lineage Series VP LVP2
Grand Design Lineage Series VP Class B gas motorhome LVP2 highlights: Sliding ... more about Lineage Series VP LVP2
Have a question about this floorplan? Contact Us
Specifications
Sleeps 2 Length 20 ft 11 in Ext Width 6 ft 9 in Ext Height 10 ft 2 in Int Height 6 ft 10 in GVWR 9350 lbs Fresh Water Capacity 31.50 gals Grey Water Capacity 26 gals Black Water Capacity 12 gals Tire Size 225/75R16C Furnace BTU 7500 btu Fuel Type Gas Engine 3.6L V6 24V VVT Chassis 3500 159 EXT SHR Horsepower 276 hp Fuel Capacity 24 gals Wheelbase 159 in Torque 250 ft-lb Refrigerator Type 12V Refrigerator Size 5.30 cu ft Cooktop Burners 1 Number of Awnings 1 Axle Weight Front 4269 lbs Axle Weight Rear 5291 lbs Water Heater Capacity 2.6 gal Water Heater Type Truma Combi Eco Plus AC BTU 18000 btu TV Info Swing Arm TV Awning Info 13' Girard Armless Awning with Wind Sensor Gross Combined Weight 12000 lbs Shower Type Wet/Bath Shower Electrical Service 30 amp Solar Wattage 180 watts Similar Floorplans
Lineage Series VP Features:
Standard Features (2026)
Frame & Chassis
- 3500 Cargo Van Super High Roof (159in WB EXT)
- GVWR 9,350 lbs / GCWR 12,000 lbs
- 3.6L V6 24V VVT
- Transmission: TorqueFlite FWD 9-Spd 948TE Auto Transmission

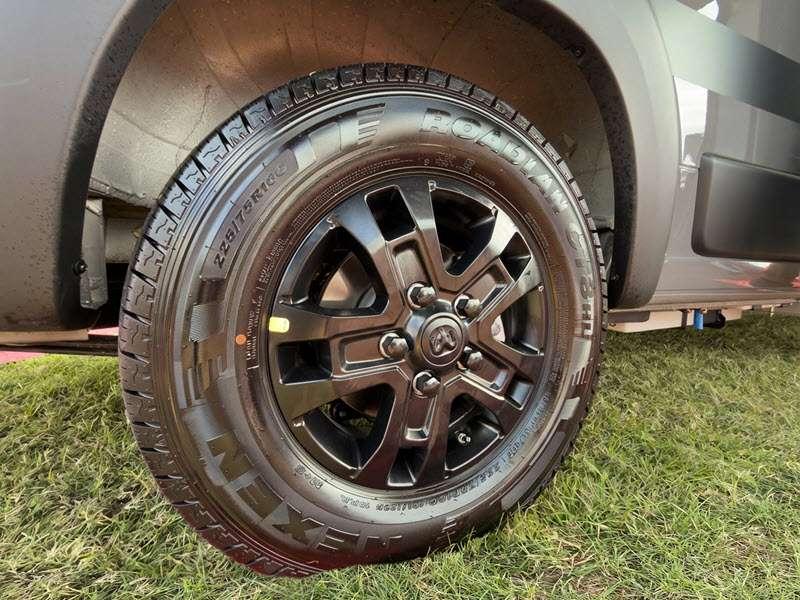

- 225/75R16C BSW All Season Tires
- 16 x 6-inch front and rear black aluminum wheels
- Premium Heavy Duty Suspension
- 220 Amp Alternator
- Auto high beam headlamp control
- Full size spare tire underslung
- Blind Spot and Cross Path Detection
- Intelligent Speed Assist
- Digital Rearview Mirror with AutoDim
- Lane Departure Warning Plus
- ParkSense FR/RR Park Assist System

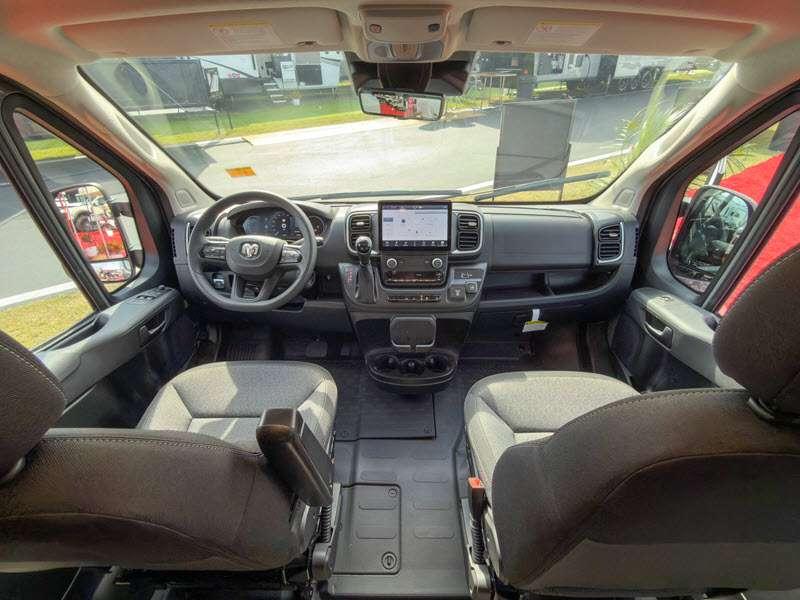

- Uconnect 5 Nav w 10.1" Display
- Wireless Charging Pad
- Passive Entry
- Swiveling Driver and Passenger Seat
- Apple CarPlay/Google Android Auto
- Remote Start
- SiriusXM Radio Service
- Front Cup Holders
- USB-C Socket
- 5,000lb tow hitch
Construction

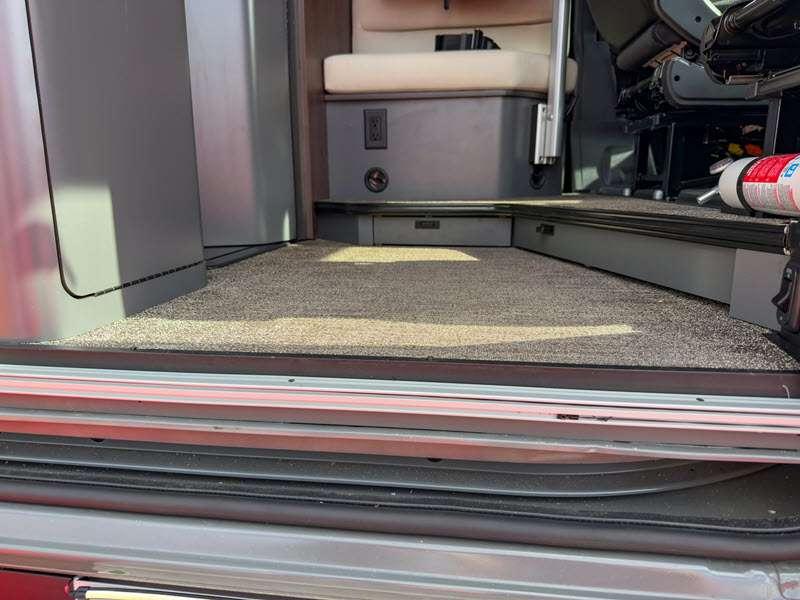

- 2" Plascore Honeycomb composite floor with bottom radiant barrier
- 2tec2 Woven Fabric flooring
- Alpha insulation and 3M Thinsulate
- CNC Routed Wall Panels
- Thermoformed ABS kithenette panels
- Thermoformed Automotive wall panels
- SharkBite Evo Pex Push2Connect Plumbing System (Max SS braided shut offs)
Exterior
- Polyplastic Double Pane acrylic operable windows
- 13ft Girard Armless Awning with Wind Sensor
- Starlink prep included bracket and power cord
- Exterior Shower
- Ladder Prep

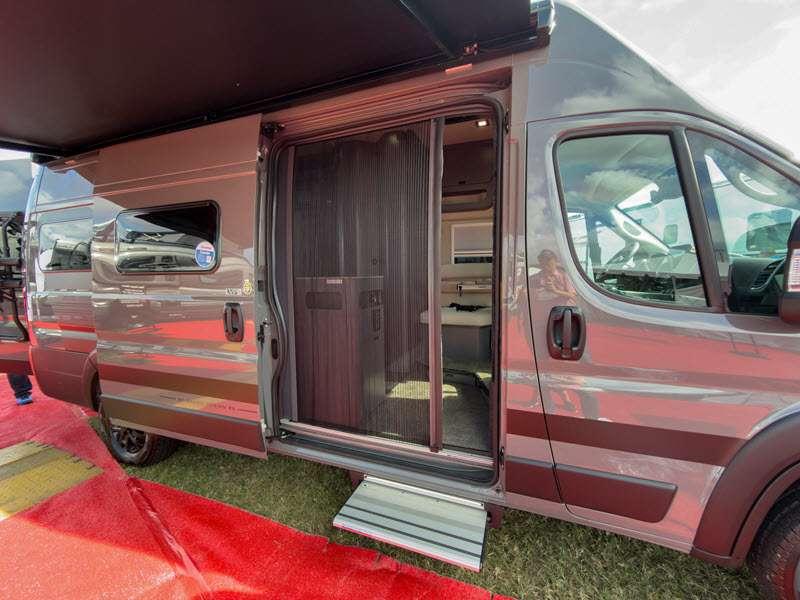

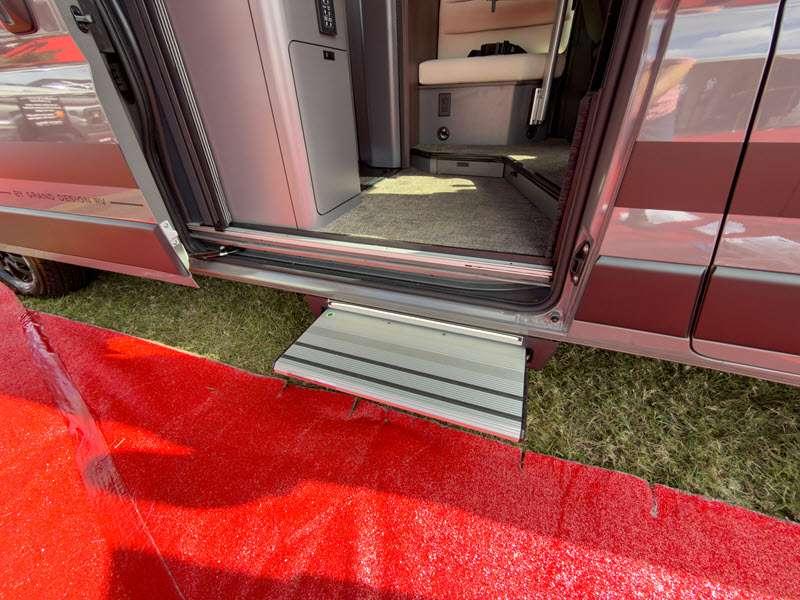

- Power Sliding Step

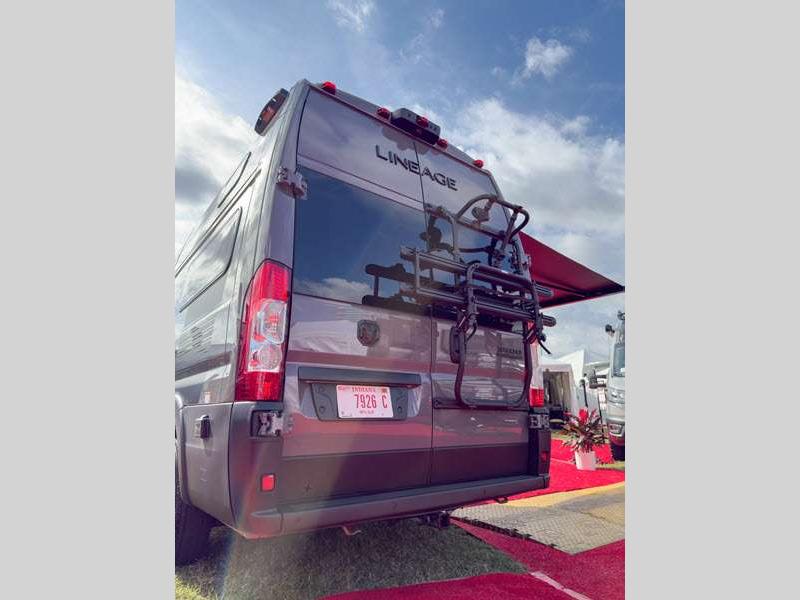

- Thule Bike Rack Carrier
Interior

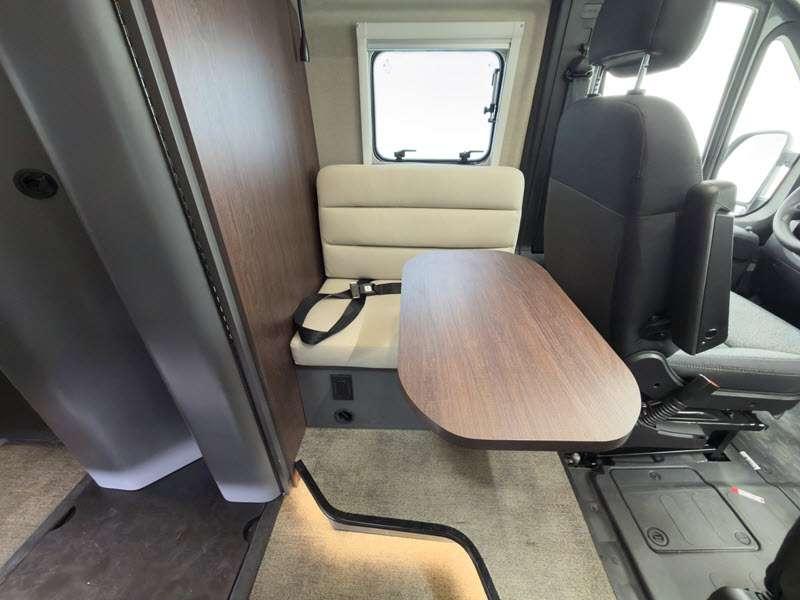

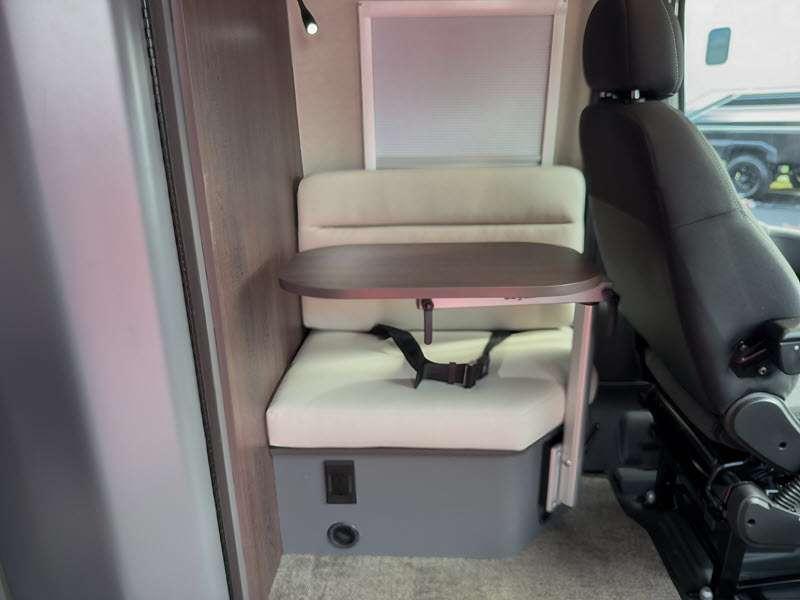

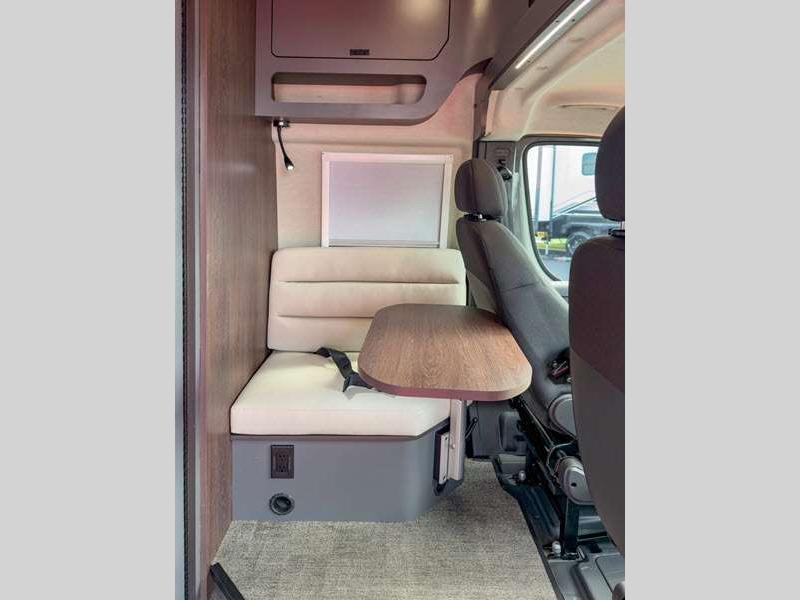

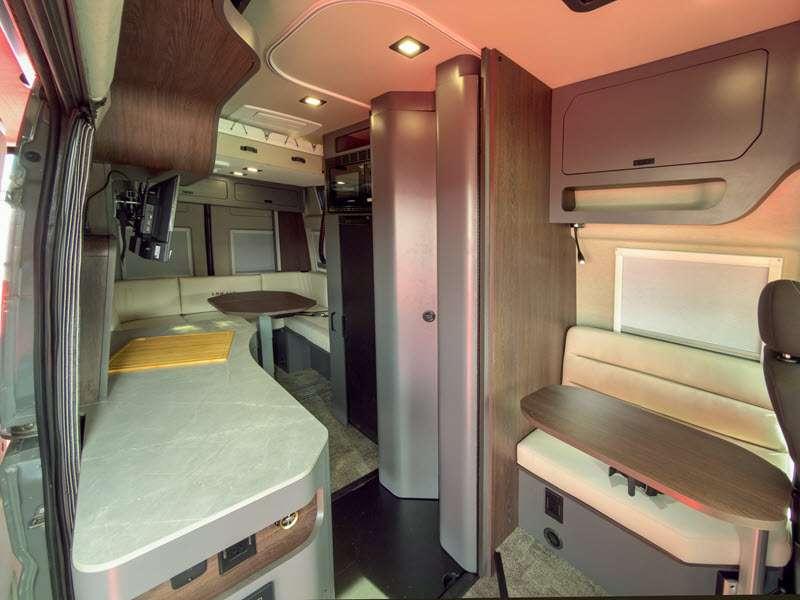

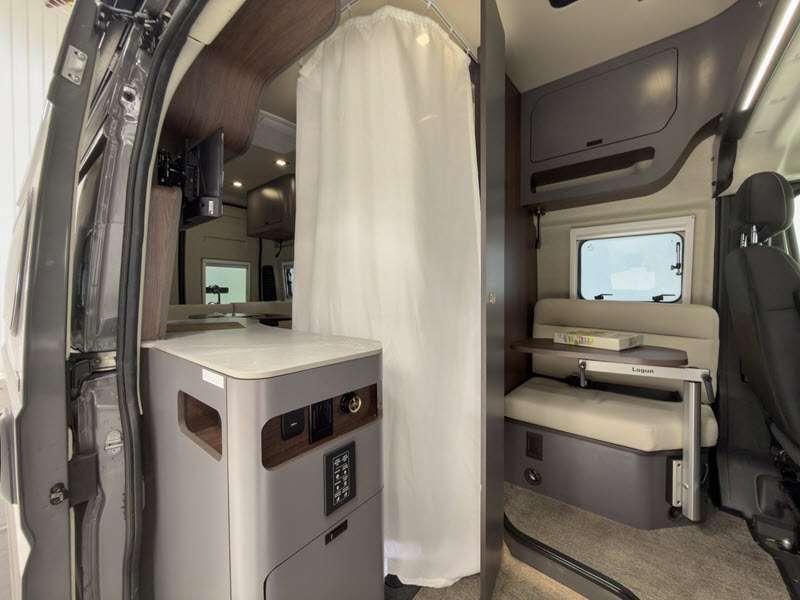

- Side facing lounge bench w/ Lagun Table
- Integrated black out window shades and screens
- Multiple charging ports

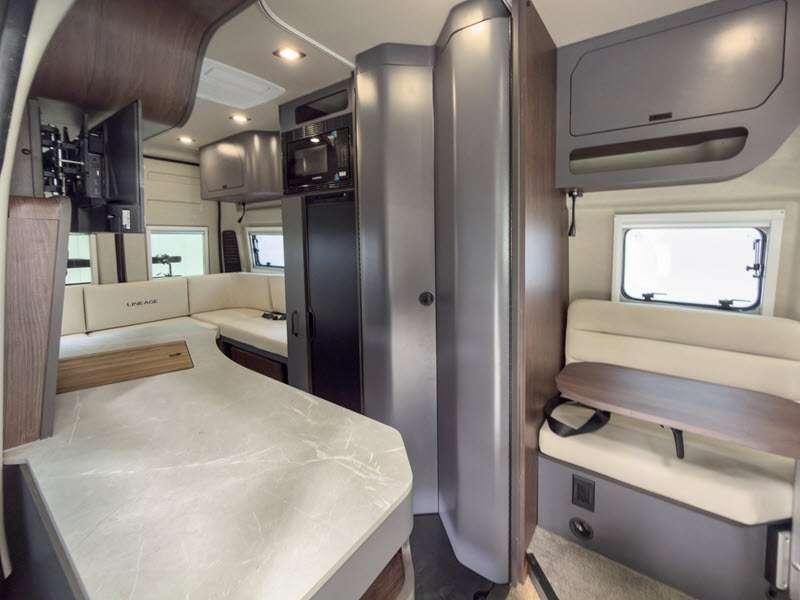

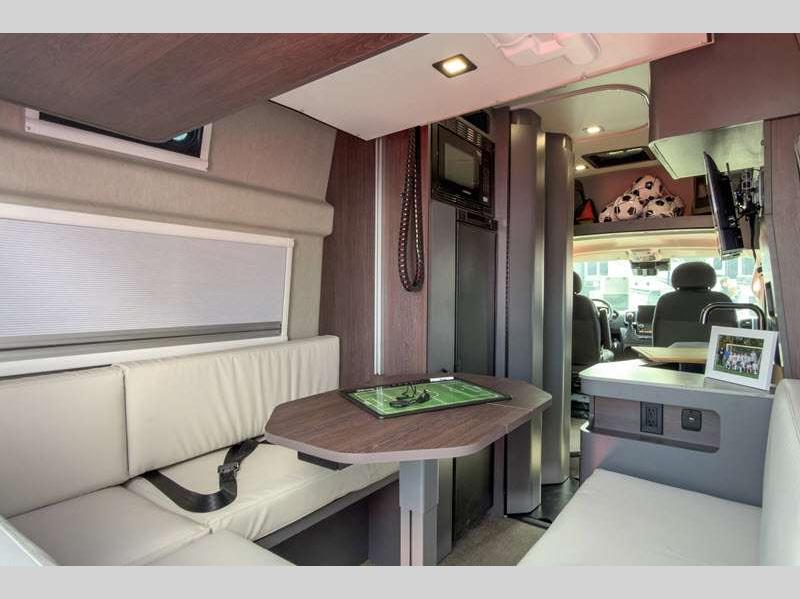

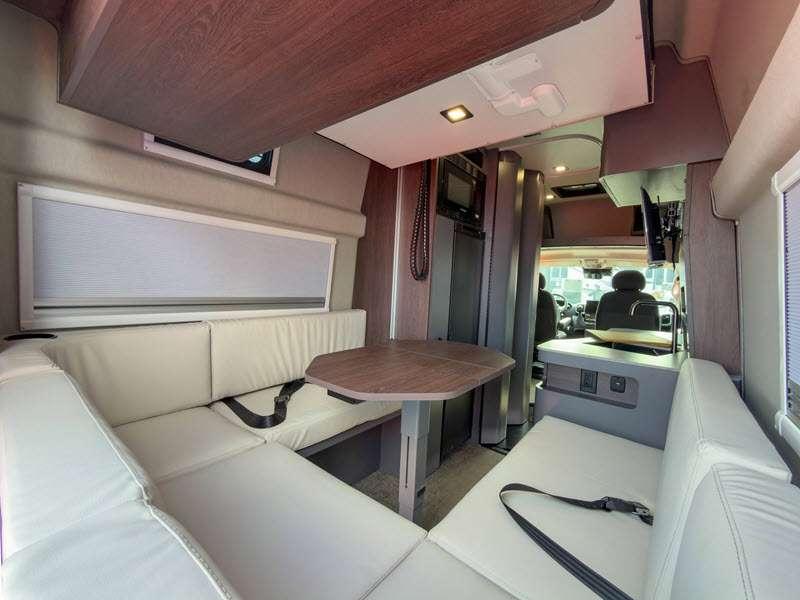

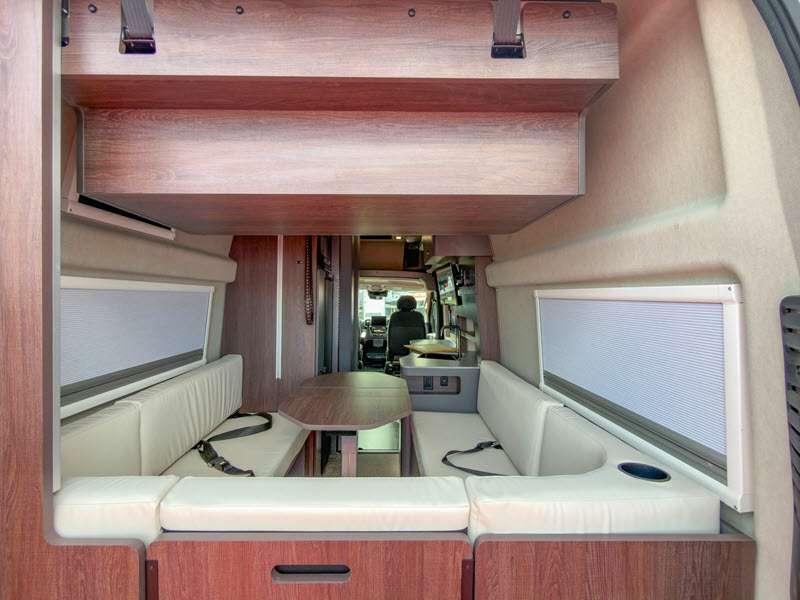

- Rear U-Shaped dinette lounge
- 6 seatbelt positions
- Pull Across Flyscreen

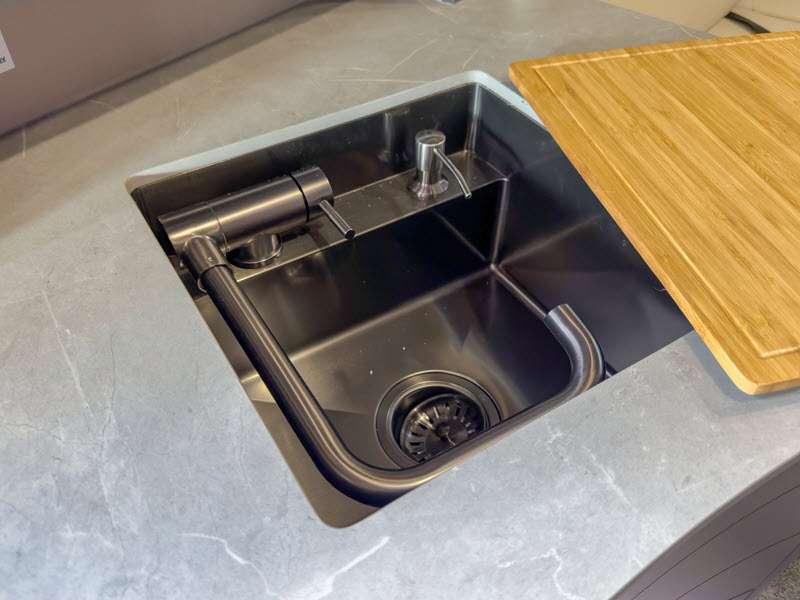

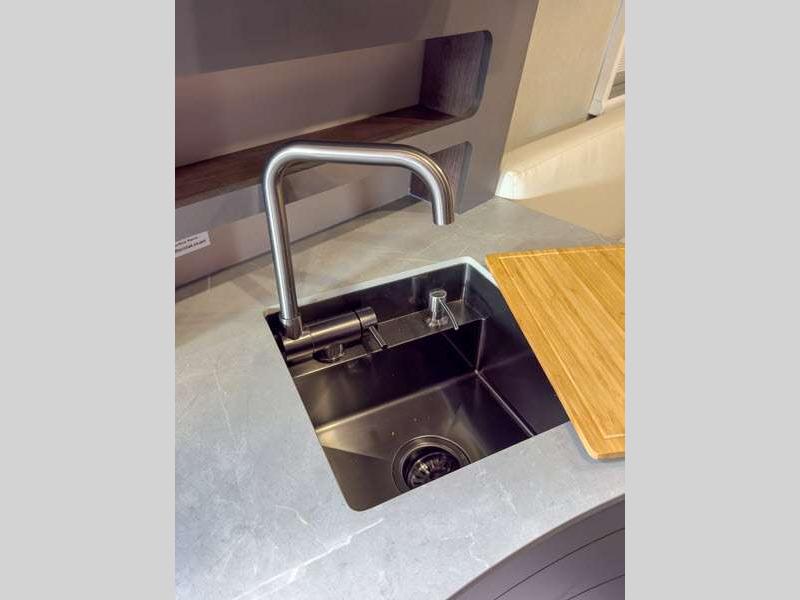

Kitchen
- Invisacook Hidden Single Burner Induction Cooktop

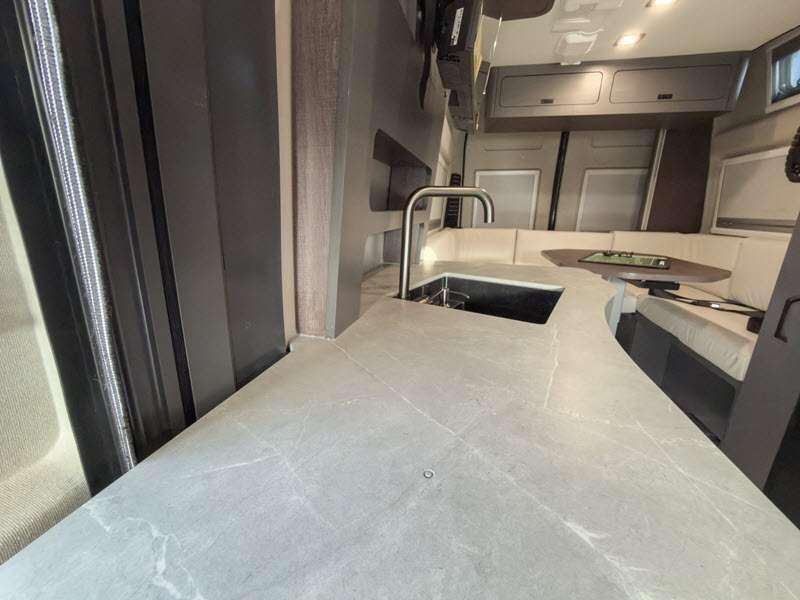

- Porcelain countertop
- Furrion 0.9 cuft Air Fryer/Convection microwave
- Positive locking latches
- Soft-Close drawer slides

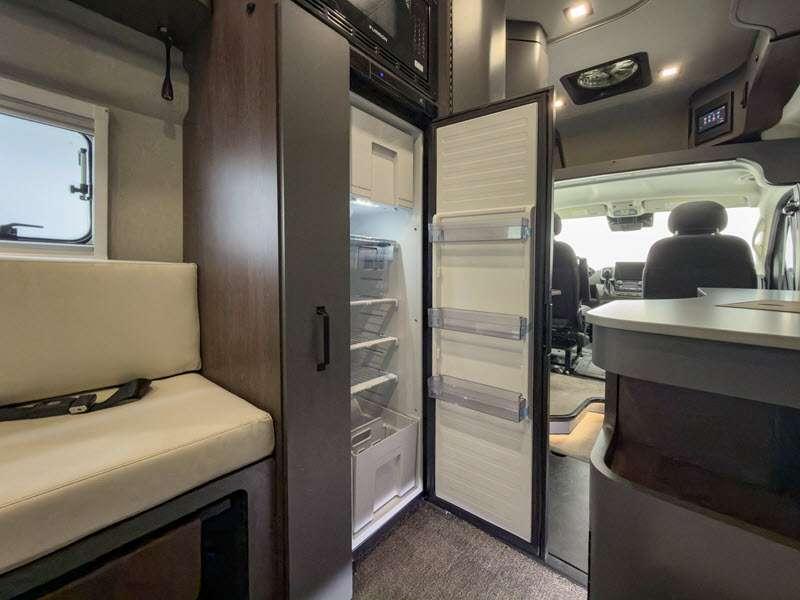

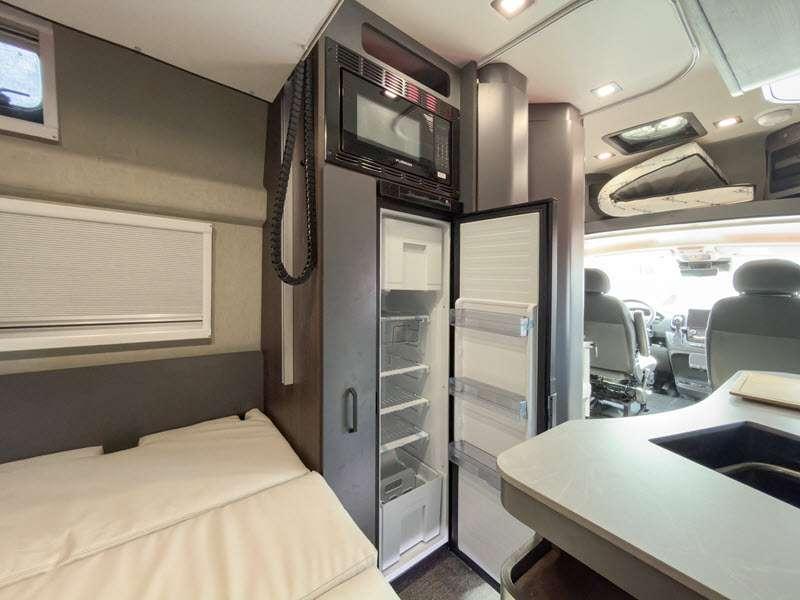

- Norcold 5.3 cu. ft. 12V DC

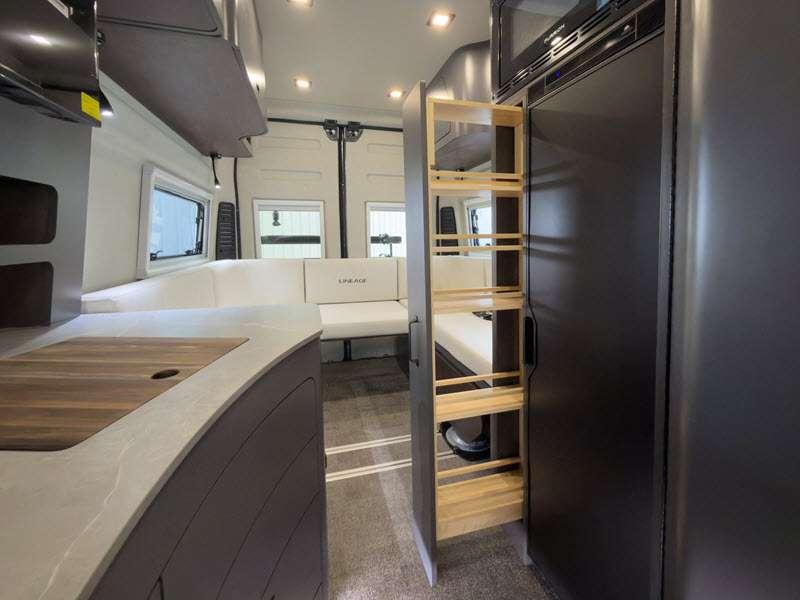

- Pull Out Pantry

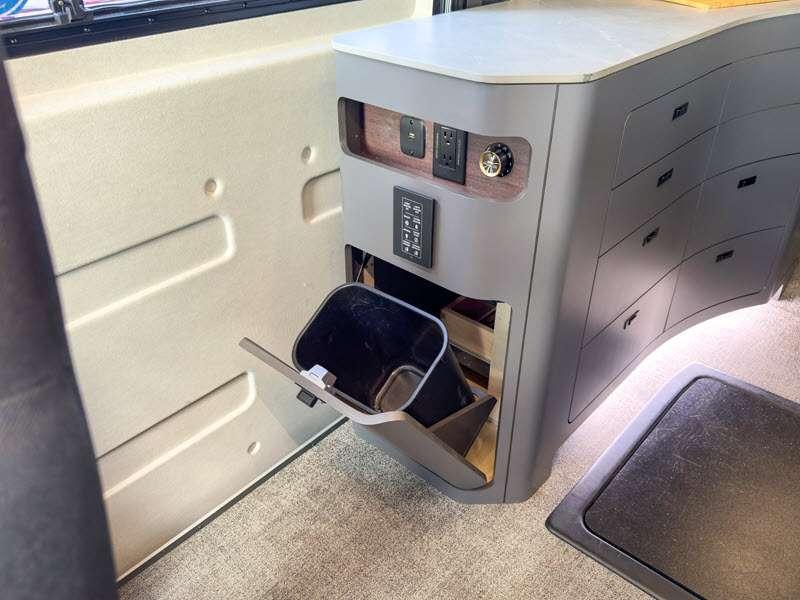

- Tip out trash can
- Dovetail Drawer Boxes
Bedroom

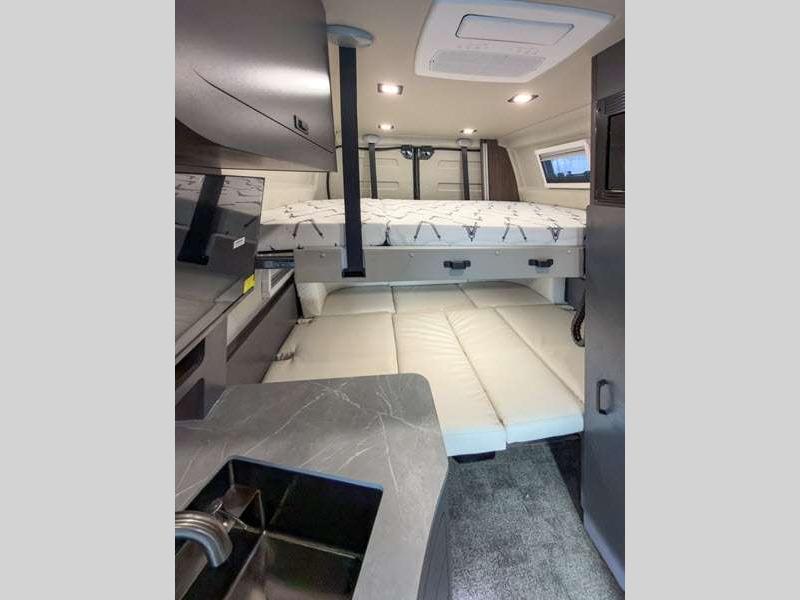

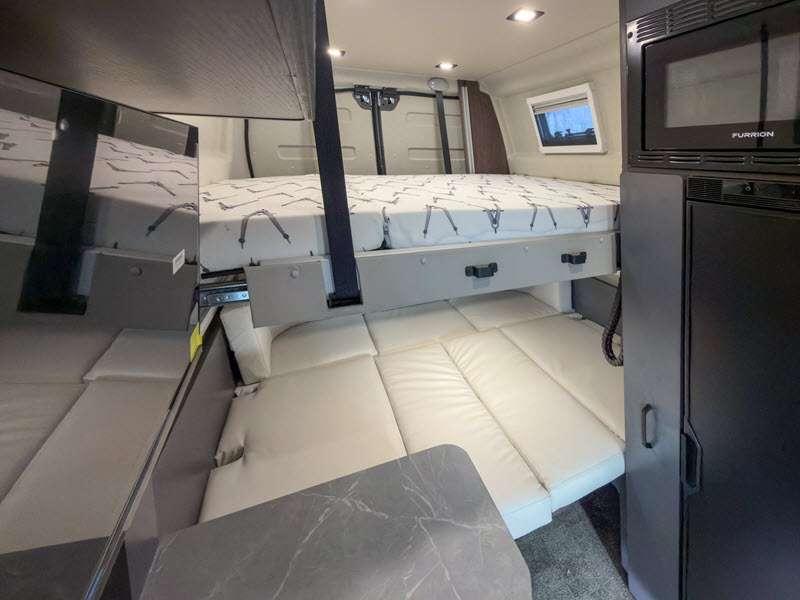

- Expanding Lift Suite drop down bed (Select Models)
- LED Reading Lights
- USB-C Charging Ports
- Pull Out and Telescoping Dinette Table

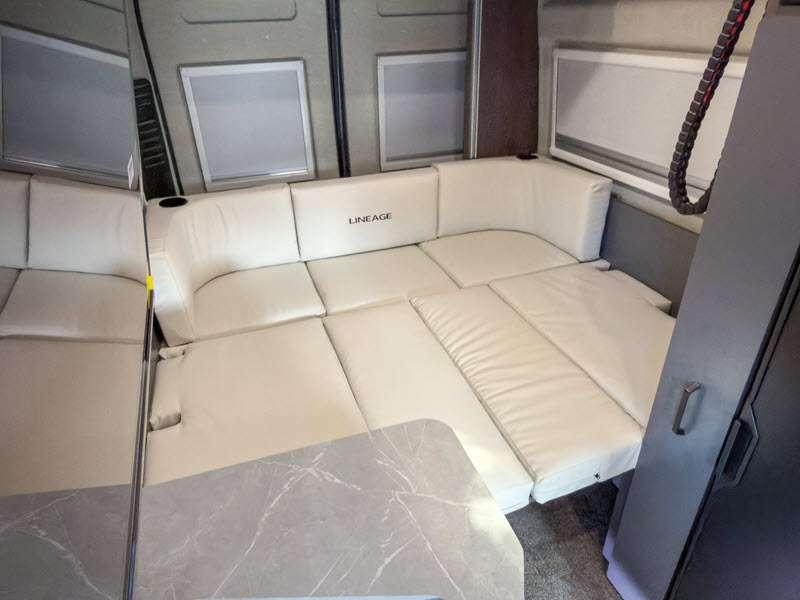

- U shaped lounge converts to queen bed

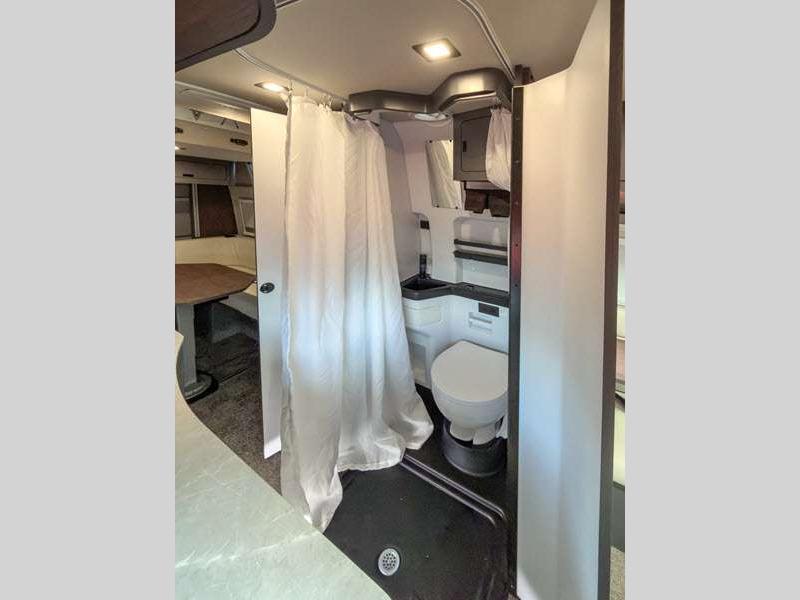

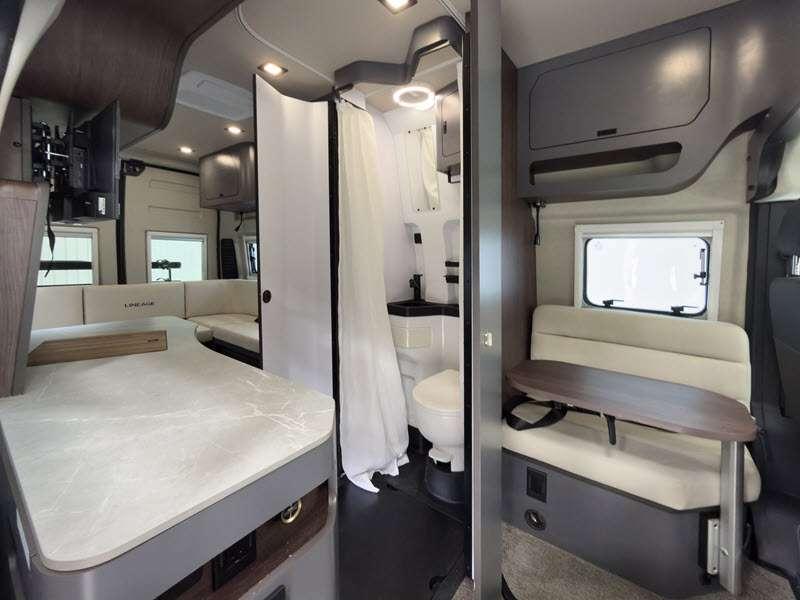

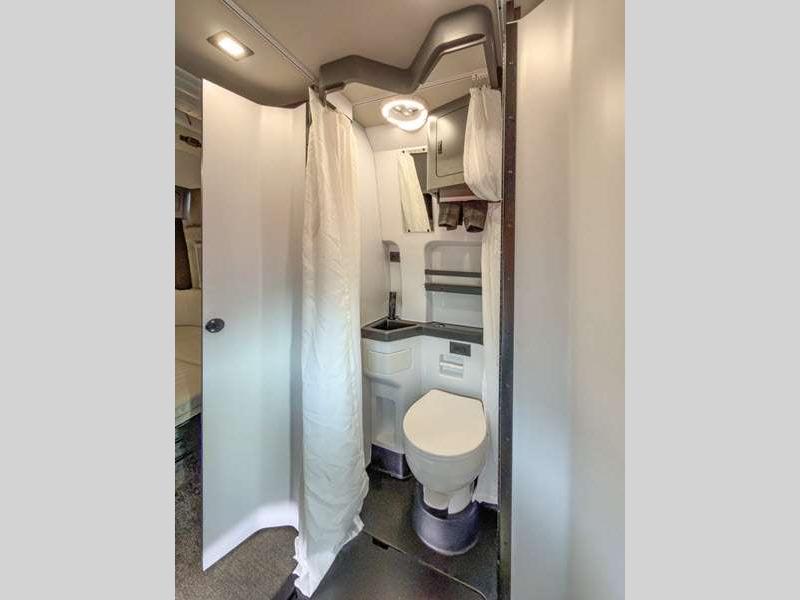

Bathroom
- Thetford Toilet
- LED Vent Fan
- Medicine cabinet
- Sink with pullout shower wand
- Three position bathroom door: Travel, Toilet & Shower

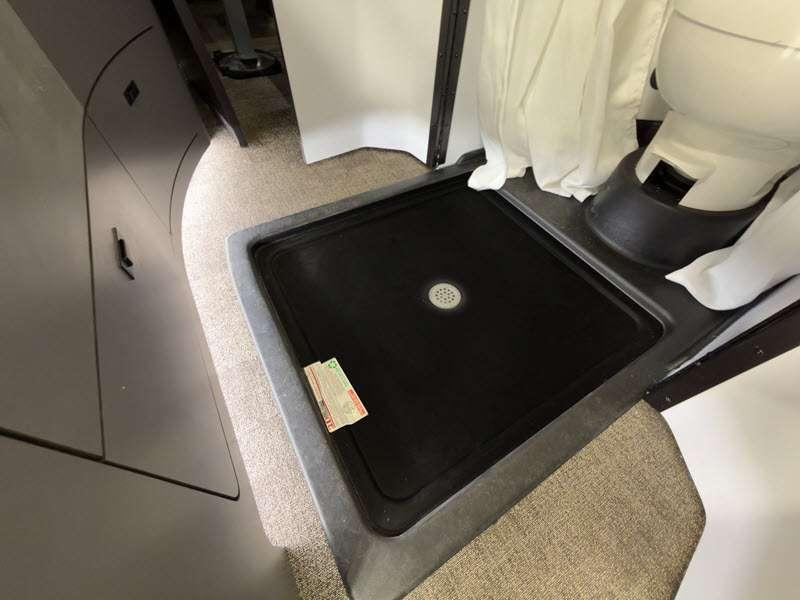

- Integrated flush floor shower pan
Utilities

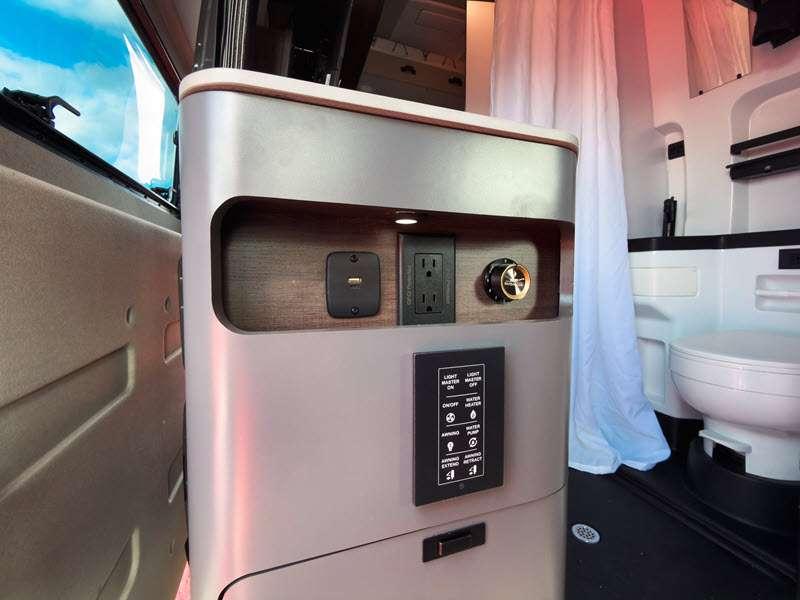

- Firefly Integrations® Touch Screen Command Center, Bluetooth® Switches & Smart Phone App (Global)
- 3,000 Watt 12 volt inverter charger
- 18K BTU Furrion Chill Cube Variable speed with Heat Pump
- 12V Water Pump
- 12V Heat pads (Fresh and Gray tanks)
- Carbon-Monoxide, LP/ Smoke Detectors & Fire Extinguisher
- 30 Amp Electrical Service
- Victron Solar Charge Controller
- Maxx Air Fan
- 3,968 Watt-Hours 12V Lithionics battery (2nd battery optional)
- 180 Watt Merlin Solar Panel
- Truma Combi G (Gasoline) Furnace and Hot Water Heater (2.6 gal)
Lineage Series LVP Package

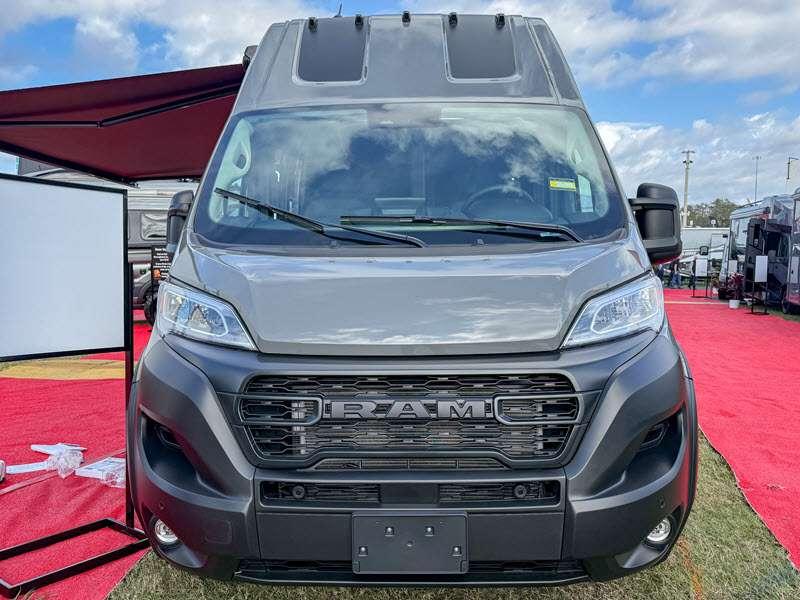

- Chassis: Ram ProMaster 3500 Super High Roof Ext.
- Standard VP Power Package
- SafeRide RV Roadside Assistance
- RVIA Seal
See us for a complete list of features and available options! All standard features and specifications are subject to change. All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details. Due to the current environment, our features and options are subject to change due to material availability.
