Grand Design Lineage Series M Motor Home Class C - Diesel RVs For Sale

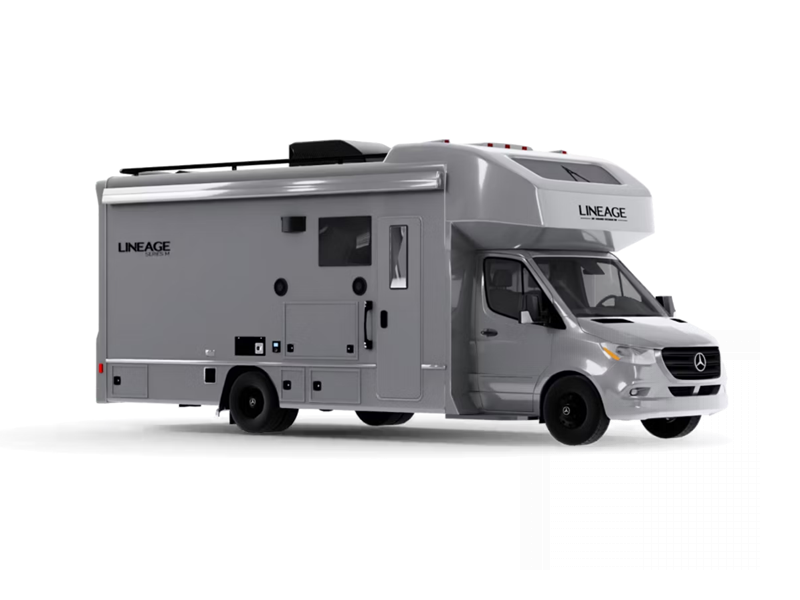

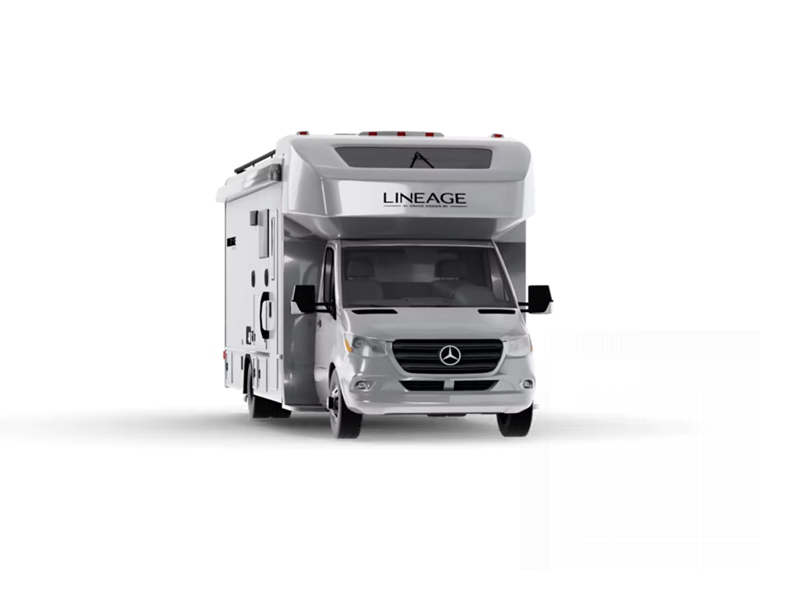

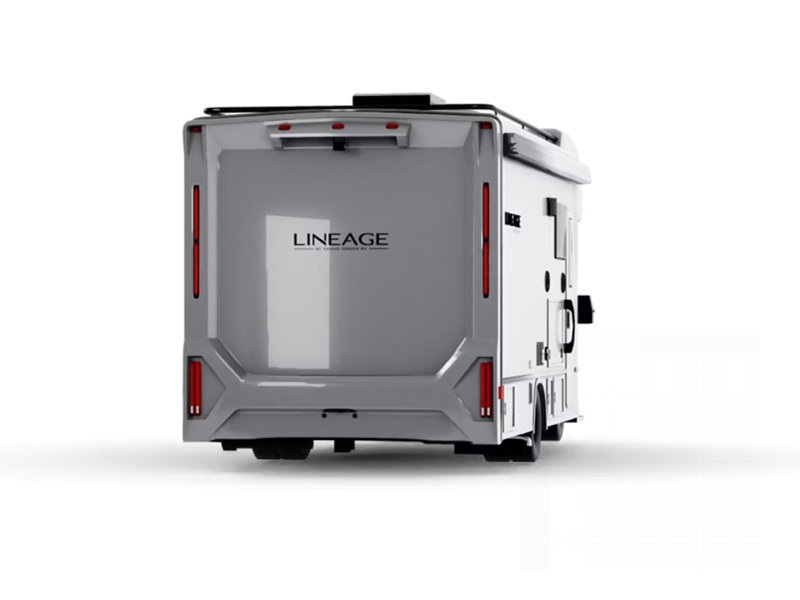

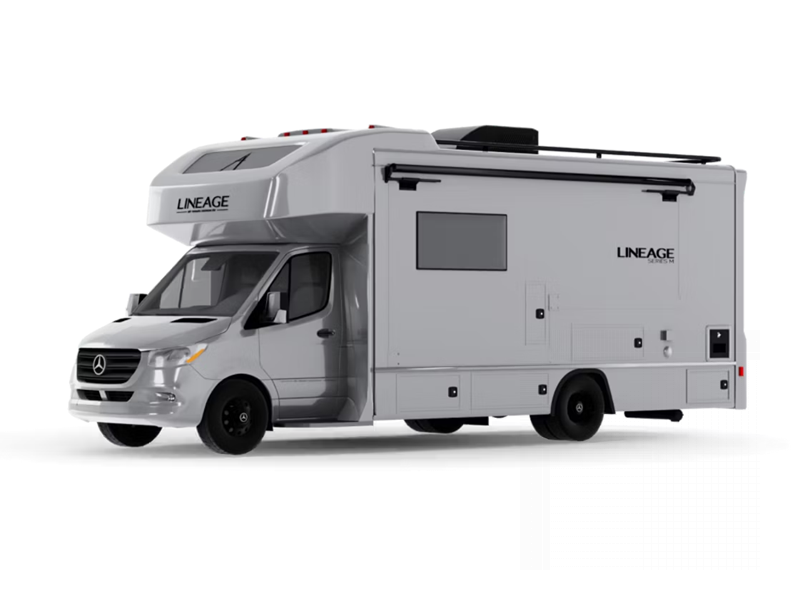

Grand Design introduces their first motorhome to their lineup, the Lineage Series M Class C diesel, and it's sure to turn heads!
The Mercedes-Benz sprinter chassis provides a durable foundation to this coach and you'll enjoy many interior luxuries to make extended stays easier than ever. Wherever you decide to roam, you will have everything you need right at your fingertips, including kitchen and bath amenities, comfortable seating and sleeping spaces, plus storage space for personal belongings and camp gear. Like all products from Grand Design, you can be sure you're getting a quality built coach focused on attention to detail and your comfort.
The open road is calling your name with a Lineage Series M Class C diesel motorhome by Grand Design!
-
Lineage Series M 25FW
Grand Design Lineage Series M Class C diesel motorhome 25FW highlights: ... more about Lineage Series M 25FW
Specifications
Sleeps 3 Slides 1 Length 25 ft 8 in Ext Width 7 ft 11 in Ext Height 11 ft 5 in Int Height 6 ft 8 in GVWR 12125 lbs Fresh Water Capacity 35 gals Grey Water Capacity 34 gals Black Water Capacity 34 gals Tire Size LT215/85 R16DRW Furnace BTU 30000 btu Generator 3.6kW Onan Fuel Type Diesel Engine Twin Turbo 2.0L Inline 4 Cylinder Chassis Mercedes-Benz Sprinter 4500 Horsepower 208 hp Fuel Capacity 24.5 gals Wheelbase 170 in Number Of Bunks 1 Available Beds King Torque 332 ft-lb Refrigerator Type 12V Refrigerator Size 10 cu ft Shower Size 24" x 34" Number of Awnings 1 Axle Weight Front 4630 lbs Axle Weight Rear 7934 lbs LP Tank Capacity 20.30 lbs. Water Heater Type Tankless AC BTU 15000 btu Awning Info 16' Gross Combined Weight 15249 lbs Shower Type Standard Similar Floorplans
-
Lineage Series M 25TK
Grand Design Lineage Series M Class C diesel motorhome 25TK highlights: 10 cu. ... more about Lineage Series M 25TK
Specifications
Sleeps 3 Slides 1 Length 25 ft 8 in Ext Width 7 ft 11 in Ext Height 11 ft 5 in Int Height 6 ft 8 in GVWR 12125 lbs Fresh Water Capacity 36 gals Grey Water Capacity 30 gals Black Water Capacity 30 gals Tire Size LT215/85 R16DRW Furnace BTU 20000 btu Generator 3.6kW Onan Fuel Type Diesel Engine Twin Turbo 2.0L Inline 4 Cylinder Chassis Mercedes-Benz Sprinter 4500 Horsepower 208 hp Fuel Capacity 24.5 gals Wheelbase 170 in Number Of Bunks 1 Available Beds King Torque 332 ft-lb Refrigerator Type 12V Refrigerator Size 10 cu ft Shower Size 24" x 34" Number of Awnings 1 Axle Weight Front 4630 lbs Axle Weight Rear 7934 lbs LP Tank Capacity 20.30 lbs. Water Heater Type Tankless AC BTU 15000 btu TV Info LR 32" 12V LED Smart TV, BR 32" 12V LED Smart TV Awning Info 16' Gross Combined Weight 15249 lbs Shower Type Standard Similar Floorplans
Take a Virtual Tour
Lineage Series M Features:
Standard Features (2026)
Frame & Chassis
- Mercedes-Benz® Sprinter 4500 Cab Chassis with 170" Wheelbase
- GVWR 12,125 lbs. / GCWR 15,250 lbs.
- 2.0 Ltr Inline 4-Cylinder High Output TwinTurbo Diesel (208HP/332lb-ft)
- 9G-TRONIC Automatic Transmission / Rear Wheel Drive
- Alternator 14V 280A
- Driver/Passenger HeadRest Safe (permanent install)
- Comfort Package
- Driver Convenience Package
- Power Windows & Door Locks w/ Multiple Key FABs
- MBUX Multimedia System w/10.25 touchscreen (AM/FM, Apple® CarPlay™ / Android® Auto™)
- Comfort Plus Package
- Thermotronic Automatic Climate Control
- Multifunctional Leather Steering Wheel (Heated, Adjustable - Angle)
- D/P Seats - Swivel, Heated, Power, Arm Rests, Storage Pockets and Lumbar Support
- D/P Door Mounted Assist Handles
- 115V Socket / USB-C Socket 5V / 12V Outlet Driver Seat Base
- Active Brake Assist
- Crosswind Assist
- Attention Assist
- Hill Start Assist
- Fog Lamps with cornering light function
- High Beam Assist
- LED Tail, Brake, Marker, Turn and Backup Lights
- LED High Performance headlamps
- Dual Chassis Battery 12V 92AH 850A (w/disconnect)
- Jump Start Terminal
- Electronic Stability Program (ESP)
- Acoustic Package
- Park brake lever, folding
- Winter Package Plus
- Wet Wiper System / Rain Sensor
- Emergency Call System (ECALL)
- Heated & Electrically Adjustable Exterior Mirrors
- Dashboard Charging Package
- Front Cup Holders
- Outside Temperature Gauge
- 215/85R16 All-Season Tires
- Tire Pressure Monitoring Lamp (TPMS x 6 tires)
- Front & Rear Mudflaps
- Axle Ratio 4,727
- Cockpit Privacy Shades (Windshield, Driver & Passenger)
- Fiberglass Running Boards w/ traction tread and Diamond Shield® Paint Protection
- Twin-Turbo 2.0 Ltr. Inline 4 Cyl
Construction
- MORryde® Tubular Steel Chassis Halo Upfit
- Aluminum Exterior Luggage Doors (Side Swing & Key Alike)
- Heavy Gauge Aluminum Framed Sidewall, Roof and Floor - Laminated w/ Block Foam Insulation
- Exterior Sidewall - Talon Sheet Glass w/ Azdel OnBoard Composite
- Interior Sidewall - Composite Elk Board w/ Decorative Wallboard
- Exterior Roof - Textured Fiberglass w/ Titan Gasket Seal System / Rain Gutters
- Interior Roof - Soft Touch Ceilings w/ 1 piece Elkboard
- Aluminum Skinned Slideroom End Walls w/ Windows
- Rigid HVAC Ductwork Throughout
- Dual Pane European Acrylic Windows w/ Integrated Screen, Privacy Shade & Black Trim Kit
- European Entry Door (Dual Latch, Poly Window, Integrated Shade, Side Slide Screen Door)
- Aluminum European Power Entry Step
- Rotocast Storage Compartments w/ timed Lighting
- Lippert SlimRack® Slide-Out
- Steel Reinforced, Insulated, Fiberglass Wingwalls w/ Diamond Shield® Paint Protection
- 12V (DC) w/ Spyder Controls DC Distribution panel & 120V (AC) harnesses
- SharkBite Evo Pex Push2Connect Plumbing System (Max SS braided shut offs)
- Aluminum Roof Sport Rack
- One piece Eternabond Slideout Roof
- Steel Stepwell / Battery Box with Temp Sensor
- Aluminum Framed Interior Walls
- 3500lbs Tow Hitch w/ 7 Way Round & 4 Way Flat
Exterior
- Fiberglass Front Cap w/ Diamond Shield® Paint Protection
- Front Cap Window UV reflective film & Power Shade w/ Reflective Material
- Fiberglass Front Rear Cap
- Steel Reinforced Fiberglass Running Boards w/ step treads
- Blackout LED Marker, Brake & Tail Lights
- Girard Armless Awning w/ Wind Sensor
- Slideout Topper Awning
- Rubber Entry Assist Handle
- Aluminum Exterior Roofline Sport Rail
- Quick Connect LP Connection Compartment
- Aluminum Power Entrance Step
- 40" Exterior 12V LED Smart TV Compartment w/ GFCI Receptacle & HDMI Outlet
- Rockford Fosgate Exterior Sound System w/ Marine Speakers
- Lighted Exterior Belt Rail
- D/P Side and Back Up Cameras
- Lippert On-The-Go™ Ladder Mounting Bracket

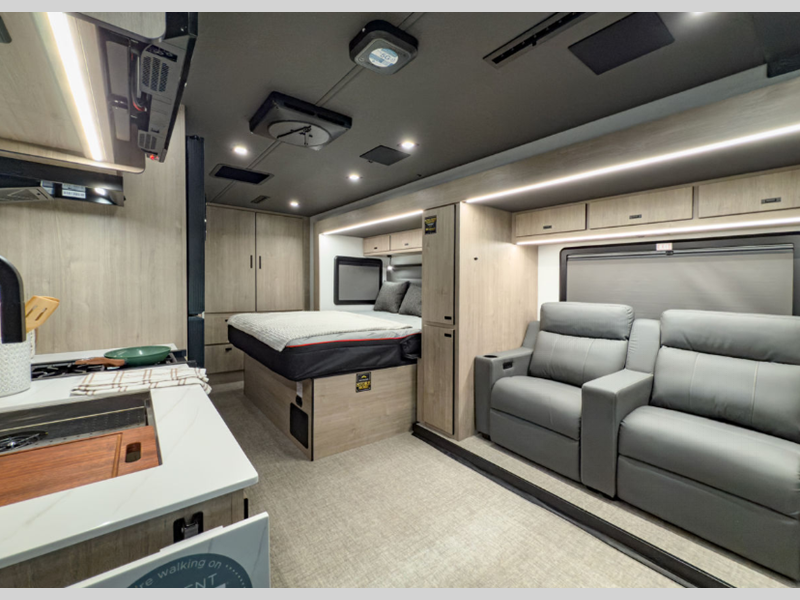

Interior
- Entry Assist Handle
- Natural Teak Wood Grain Cabinetry
- Aluminum Framed Interior Walls, Bed Base and Cabinetry (select locations)
- Technoform EPP
- Push/Lock Cabinet Doors Latches w/ Soft Close Door & Drawers (Hidden Hinges)
- Solid Maple Dovetail Drawer Boxes w/ Soft Close Ball Bearing Drawer Guides
- Shaw Commercial Grade Vinyl Flooring
- Soft-Touch Padded Ceiling (Including Sideout)
- Square LED Ceiling Lights
- 32" 12V LED Smart TV (Living Room & Bedroom)
- Rockford Fosgate Interior Sound System, Square Magnetic Speakers & Powered Subwoofer
- 4000K Interior LED Lighting Package (Square / Strip)
- COBRA (Cab Over Bunk Ram Air)
- Entry Step Battery Compartment
- Multiple Charging Ports (USB, USB-c, 120V)

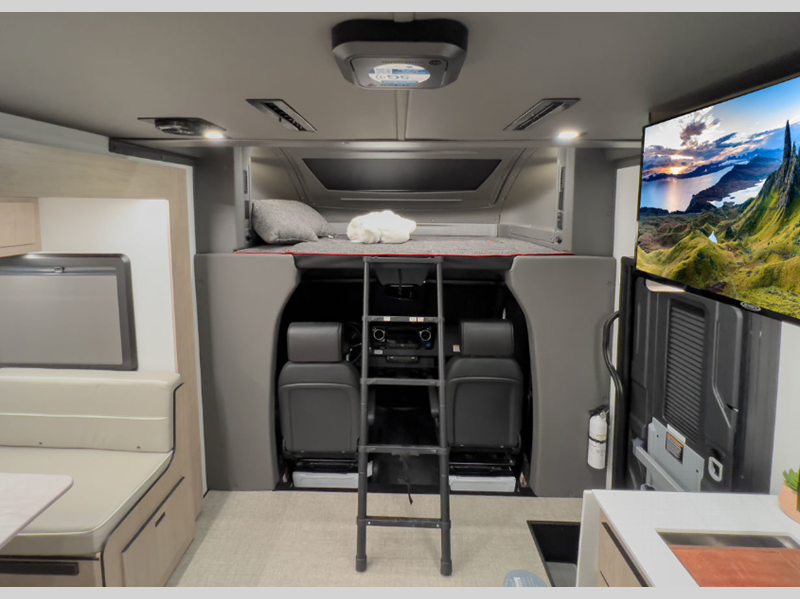

- Molded front overhead bunk with Lights, Chargers, Privacy Curtain and A/C
- Power Theatre Seating w/ Ratcheting Head Rests, Power Recliners and Dual Composite Sofa Tables
- Rear Wardrobe
- Front Bunk Ladder
Kitchen
- 10 Cu/Ft 12V 3 Door Refrigerator
- 2 Burner Stove w/ Glass Cover and Overhead Range Hood
- Air Fryer / Convection Microwave Oven
- Solid Surface Kitchen Countertop w/ flip up extension
- Matte Black pull out Kitchen Faucet
- MaxxAir® Power Vent with Built-In Rain Cover

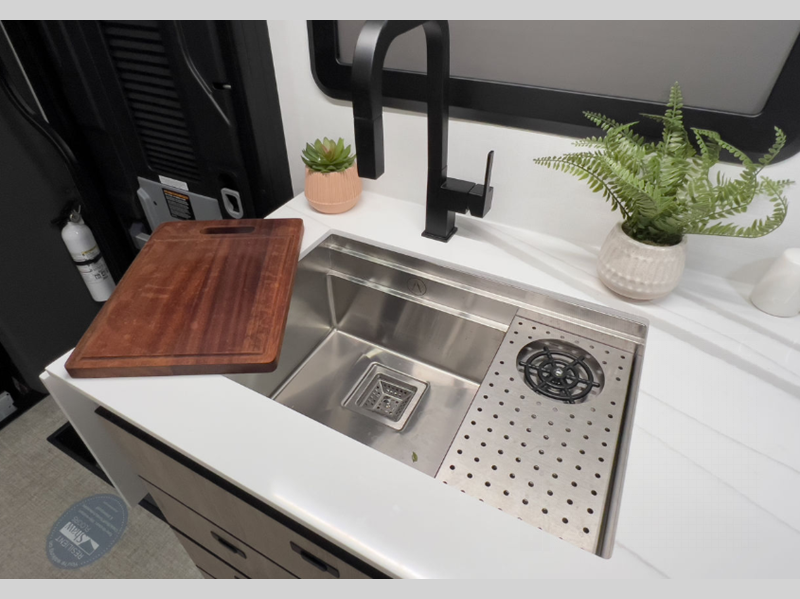

- Stainless Steel Sink w/ countertop mounted glass washer & Cutting Board
- Ultra Leather Package

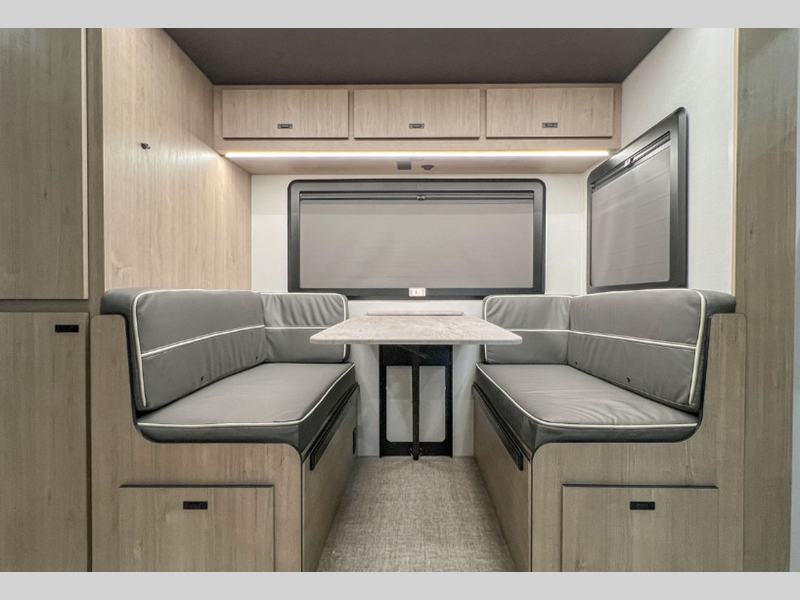

- Theater Seating or Dinette
- Cockpit Seating
- Headrest Safe

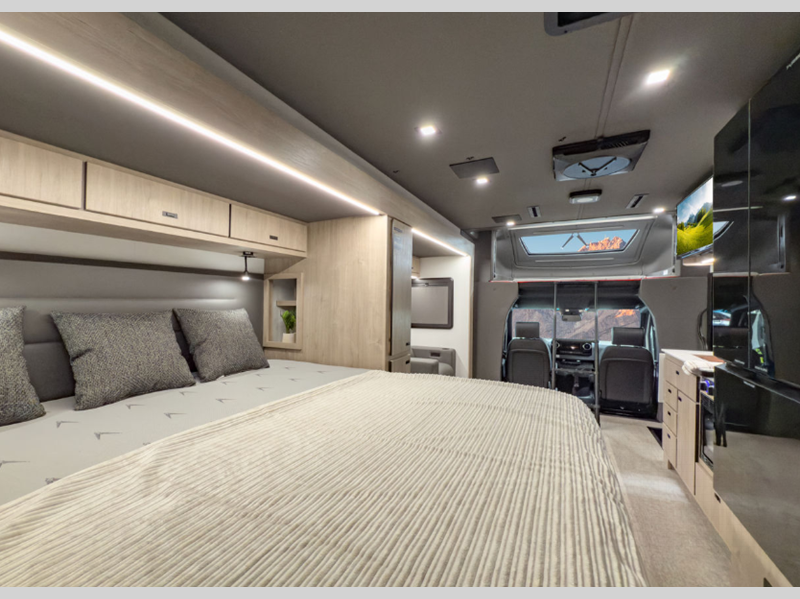

Bedroom
- 70"x 80" King Bed by Indratech (Reinforced Edges, Medium Memory Foam)
- Under-Bed Storage
- 32" LED Smart TV
- LED Reading Lights
- USB Charging Ports
- Privacy Curtain
Bathroom
- Custom Shower Surround and Pan w/Linear Slot Drain, SeaDek Pad, Lighted Skylight-Shower Dome
- Matte Black Bathroom Faucet and Shower Tower
- Matte Black Retractable Shower Door
- Solid Surface Lav Countertop w/ Undermount Stainless Sink
- Porcelain Toilet
- Matte Black Bathroom Harwards Accessory Package
- 12V Power Vent
Utilities
- Firefly Integrations® Touch Screen Command Center, Bluetooth® Switches & Smart Phone App (Global)
- Titan Aluminum 4-Point Hydraulic Leveling Jacks
- Battery Disconnects (Entry & Battery Service)
- 1,800 Watt Xantrax Pure Sine Wave Inverter
- 4500kW NPS® LP Generator with Auto Generator Start Capabilities
- ATG Designed Gree A/C System (Ducted 15KBTU AC w/ 12K Heat Pump, Soft Start & Dehumidifier
- Linear Slot Diffusers, RV Airflow Package, Custom Return Air Plenum and Insulated Ducting
- Truma® Aqua Go Comfort™ On-Demand Water Heater
- Utility Center (Water Management Valve, Exterior Shower, Cable TV Hookup, Black Tank Flush)
- SureLevel® Tank Level Monitoring System
- 12V Water Pump (4 gallons per minute)
- 12V Heat Pads (Fresh, Gray & Black Tanks)
- Carbon-Monoxide, LP/ Smoke Detectors & Fire Extinguisher
- Temp sensors (Battery Compartment, Interior, Exterior)
- (2) 130Amp/HR Lithionics Batteries
- 30 Amp Electrical Service w/ Southwire Transfer Switch
- Kisae DC-DC Charger / Solar Controller
- StarLink Satellite Internet
- (3) 180 watt (600 w Total) Merlin Solar Panels with 30-Amp Controller
Series M Package
- Mercedes Benz Sprinter 4500 2WD
- Natural Teak Wood Grain
- Suspension Package
- StarLink Internet
- SafeRide RV Roadside Assistance
- RVIA Seal
Ultra Leather Package
- Apex Theater Seating or Dinette Booth w/ Drawers & Dream Dinette Bracket
- Cockpit Seating
- HeadRest Safe D/P
Blackout Package
- Black Aluminum Wheels
- Black Exhaust Tip
- Black Logo Letters
Suspension Package
- Helwig Helper Springs
- Bilstein Shocks
Chromeout Package
- Chrome Aluminum Wheels
- Stainless Exhaust Tip
- Chrome Logo Letters
See us for a complete list of features and available options!
All standard features and specifications are subject to change.
All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.
Due to the current environment, our features and options are subject to change due to material availability.
